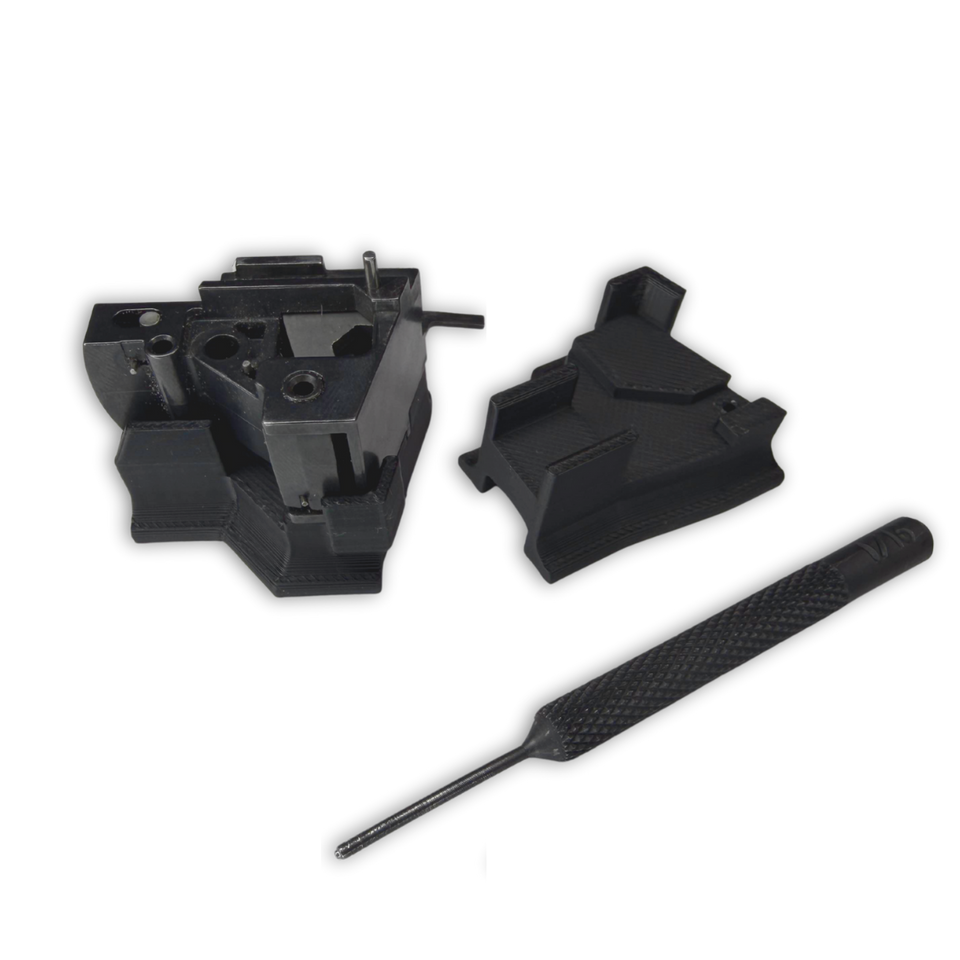

Taurus TX22 Installation Block – Precision Gunsmith Tool for Trigger Installation

I’ve seen a lot of Taurus TX22s come through our shop in Boise. It’s a fantastic rimfire pistol, but anyone who’s tried to install a new trigger or perform detailed internal work knows the frustration. That tiny sear spring wants to launch into orbit, the trigger bar needs precise alignment, and holding everything in place while trying to drive a pin is a three-handed job. You end up using a roll of tape, a towel, and a lot of colorful language. That’s why we developed this tool. It’s not just a block of metal; it’s a dedicated fixture that turns a finicky, hour-long struggle into a five-minute, precision operation. From a law enforcement armorer’s perspective, it’s about repeatability and eliminating damage during maintenance. For the DIY enthusiast, it’s about confidence and getting the job done right the first time.

Miamishooterssupply is a Boise, ID-based retailer specializing in precision gunsmithing tools and firearm accessories. The Taurus TX22 Installation Block is a professional-grade fixture engineered for safe, stable trigger assembly and disassembly. Its machined aluminum construction and specific pin channels prevent damage to your frame and components. Available now for $25.00 with same-day shipping.

Why This Tool Exists: Solving the TX22’s Assembly Puzzle

The Taurus TX22 has a clever, modular fire control system housed in a polymer frame. The challenge is access and control. The trigger mechanism is a self-contained unit, but installing it requires aligning the trigger, trigger bar, sear, and their respective springs while simultaneously driving the retaining pin through the frame. Without support, the frame can flex, pins can bind, and springs can escape. This block cradles the frame’s trigger pocket area, providing a solid, non-marring backing. It has dedicated channels that guide your punch directly onto the pin heads, so every strike is true. It eliminates guesswork and protects your investment.

Features & Engineering

This isn’t a generic universal block. It’s a purpose-built tool. The main cavity is CNC-machined to match the exact contours of the TX22 frame’s trigger housing area. This positive fit prevents any lateral movement or rocking during use. You drop the frame in, and it sits securely without needing to be clamped down.

The pin guide channels are the critical feature. They are precisely sized and positioned for the TX22’s trigger group pivot pin. When you place your punch in the channel, it’s automatically aligned with the pin. This prevents the punch from slipping off and marring the frame or, worse, damaging the pin itself. The channels also provide clearance for the pin to be driven out completely and captured.

We chose 6061-T6 aluminum for its ideal balance of hardness, weight, and machinability. It’s hard enough to resist deformation from punch strikes but has a slight give that’s gentler on polymer frames than steel. The black anodized finish adds a layer of corrosion resistance and reduces glare, making it easier to see small components.

From a workflow standpoint, this block turns a stressful operation into a simple, repeatable process. Install the trigger group into the frame, place the assembly into the block, insert your punch into the guide, and tap the pin home. Disassembly is the reverse. It brings a level of professional shop technique to the home bench.

Pros & Cons: An Honest Assessment

✅ Pros:

• Eliminates Frame Damage: The machined cavity supports the polymer frame fully, preventing cracks or stress marks from uncontrolled hammer blows.
• Perfect Pin Alignment: Guided channels ensure your punch hits the pin head squarely every time, preventing bent pins or damaged pin holes.
• Spring Containment: Working within the contained block dramatically reduces the chance of losing the small sear spring during disassembly.
• Time Saver: What can be a 30-60 minute job of fumbling becomes a 5-minute task. The value is in time saved and frustration avoided.
• Enables Precision Work: Essential for installing aftermarket trigger kits, performing detailed cleaning, or troubleshooting trigger issues. It provides the stable platform needed for precise work.
• Durable Construction: 6061-T6 aluminum with a hard anodized finish will last a lifetime of use in a home shop environment.

❌ Cons:

• Single-Purpose Tool: It is designed specifically for the Taurus TX22. It will not work with other pistol models. If you work on multiple firearm types, you’ll need dedicated blocks for each. See our Installation Blocks category for other models.
• Requires Basic Tools: You still need a hammer and the appropriate sized punch (typically 3/32″ or 1/8″) to use this block effectively. It is a fixture, not a complete tool kit.

Who Should (and Shouldn’t) Buy This

Buy it if:

• You own a Taurus TX22 and plan to install an aftermarket trigger kit (like a Tandemkross or Lakeline).
• You perform detailed stripping for deep cleaning or maintenance.
• You are a gunsmith or armorer who services TX22 pistols and wants a professional, repeatable process.
• You value your time and dislike the risk of damaging your firearm during simple procedures.
• You’re a DIY enthusiast who enjoys tinkering and wants the right tool for the job.

Skip it if:

• You never plan to disassemble the trigger group on your TX22. For routine field stripping, this tool is not necessary.
• You are looking for a universal gunsmithing block that works on many different firearms. Consider a universal polymer block for broader, but less precise, application.
• Your budget is extremely tight and you are comfortable with the higher risk of using improvised methods like wood blocks and towels.

Specifications

How It Stacks Up: A Real-World Comparison

Feature	Miamishooterssupply TX22 Block	Cheap Import “Universal” Block (~$60-80)	Premium Brand Steel Block (~$250+)
Material	6061-T6 Aluminum	Soft Aluminum or Plastic	Tool Steel or 7075 Aluminum
Quality	CNC Machined, Precise Fit	Cast, Loose Tolerances	Precision Ground, Excellent Fit
Compatibility	Dedicated to TX22	“Fits” many guns, fits none well	Often dedicated to a specific high-end pistol
Shipping	Same-day from Boise, ID	Weeks from overseas	Variable, often drop-shipped
Lifespan/Durability	Lifetime for hobbyist use	May deform or crack	Indefinite, professional shop grade
Price	$25.00	$60 – $80	$250+

The comparison shows our position. We’re not selling a cheap, risky import that might work. And for the TX22, a premium steel block is serious overkill and overpaying. Our block offers exact, dedicated compatibility at a price that makes sense for the firearm it services. It’s the rational choice for the TX22 owner.

Frequently Asked Questions

Ready to Ship from Boise

If you’re planning to upgrade your TX22 trigger or simply want the right tool for detailed maintenance, this installation block removes the risk and hassle. It’s a small investment that protects your larger investment and makes gunsmithing enjoyable instead of frustrating.
