For over a decade, I’ve watched shooters debate the merits of piston versus direct impingement in the AR platform. It’s a technical discussion, often filled with strong opinions and brand loyalty. When you strip away the marketing, what you’re left with is a simple engineering problem: how to manage heat, carbon, and force in the most reliable way possible. The Adams Arms P Series Mid Length Piston Kit for AR-style rifles chambered in .223 Remington/5.56mm isn’t just another conversion kit. It’s a purpose-built system designed to fundamentally alter the operating characteristics of your rifle, moving the gas system from inside the bolt carrier group to a self-contained, short-stroke piston assembly above the barrel. This isn’t about following a trend; it’s about choosing a specific mechanical solution for specific performance goals.
Reviewed by Cody Ramirez, E-Commerce Director at Miamishooterssupply. 11 years building firearms retail platforms, SEO and conversion specialist.
Last updated: March 2026

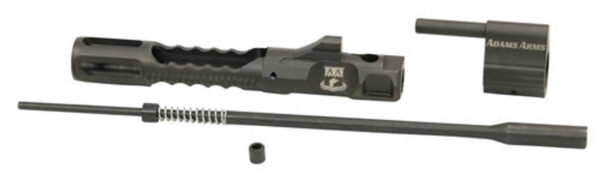

Miamishooterssupply is a Boise, ID-based retailer specializing in firearms parts and DIY gunsmithing components. The Adams Arms P Series Mid Length Piston Kit is a complete short-stroke gas piston conversion system for AR-15/M4 pattern rifles. Its key differentiator is a robust, self-regulating design that requires no adjustable gas block for reliable function across a wide range of ammunition. This kit is in stock and ready to ship today at a competitive price point that bridges the gap between budget imports and ultra-premium brands.
What This Kit Actually Does
Installing this Adams Arms P Series Mid Length Piston Kit changes the fundamental way your rifle cycles. Instead of hot, carbon-fouled gas being routed directly into the bolt carrier group (BCG) via the gas key, the system captures gas at the mid-length gas port. This gas drives a piston rearward, which then strikes an op-rod attached to a proprietary bolt carrier. This action imparts energy to the carrier, cycling the action. The significant result is that the vast majority of combustion byproducts—carbon and heat—are expelled at the gas block, not inside your upper receiver and BCG. From a maintenance and reliability perspective, especially in adverse conditions or during high-volume firing, this shift is substantial.
Core Features & Build Quality
The heart of the system is the bolt carrier. Adams Arms machines this from a solid billet of 8620 steel, then heat-treats it to a specific hardness for durability. It features a unique, scalloped design on the carrier body which reduces weight and reciprocating mass, helping to mitigate the heavier feel often associated with piston guns. The carrier is hard chrome plated internally and has a Nitride (Melonite/QPQ) exterior finish. This combination provides excellent corrosion resistance and a smooth, low-friction surface for reliable cycling.
The piston assembly itself is a two-piece design. The gas piston is made from 4140 steel and is also Nitride treated. It rides within a steel gas cylinder that is pinned to the gas block. The gas block is a low-profile, steel unit that clamps onto the barrel, eliminating the need for drilling taper pins and simplifying installation. A critical feature is the self-regulating gas plug. This component automatically manages gas pressure based on the ammunition used and whether the rifle is fired suppressed or unsuppressed. You won’t find an adjustment tool or set-screws here; the system is designed to be set-and-forget, which is a major advantage for duty or defensive use where simplicity under stress is paramount.
Compatibility is straightforward but specific. This is a mid-length system, so it requires a barrel with a mid-length gas port (approximately 9 inches from the chamber face). It is designed for .223 Remington/5.56mm NATO chambers. The kit includes a proprietary bolt carrier, piston assembly, op-rod, gas block, gas plug, and all necessary mounting hardware and roll pins. It does not include a bolt, firing pin, or cam pin—you reuse your existing bolt from your direct impingement carrier (provided it’s in-spec).
Pros & Cons: An Armorer’s Perspective
Based on handling and installing these kits, here’s the breakdown:
- ✅ Cleaner Operation: The most cited benefit is real. Your BCG and upper receiver stay remarkably cleaner for hundreds of rounds longer.
- ✅ Consistent Reliability: By removing fouling from the equation inside the action, you gain consistency, especially in cold, dusty, or wet environments. This is a key reason some law enforcement units adopt piston systems.
- ✅ Cooler Running: Without hot gas jetting into the BCG, the entire receiver area runs cooler. This is a tangible advantage during extended range sessions or courses.
- ✅ Reduced Maintenance: Field stripping for cleaning becomes faster and less messy. You focus on the piston head and gas block area, not scrubbing carbon from every nook of the carrier.
- ✅ Robust, Self-Regulating Design: The non-adjustable gas system is a pro for users who want a simplified, duty-ready setup. It works across a broad spectrum of ammo.
- ❌ Added Weight and Complexity: The system adds weight to the front end of the rifle (roughly 10-12 ounces over a standard DI gas block/tube). The op-rod and piston assembly are additional parts that a standard DI gun doesn’t have.
- ❌ Proprietary Parts: You must use the Adams Arms bolt carrier with this system. If a component like the op-rod fails, you need a specific replacement part, not a generic mil-spec item. We stock these parts in our piston parts section for this reason.
- ❌ Altered Recoil Impulse: Some shooters describe the recoil impulse as a sharper “pop” compared to the more diffuse shove of a DI system. This is subjective but noticeable to experienced shooters.
Who Should (and Shouldn’t) Buy This Kit
Buy it if: You are a shooter who runs their AR-15 hard and values operational reliability with minimal maintenance. This includes individuals preparing for defensive scenarios, those who shoot in adverse environments (dust, sand, extreme cold), or anyone who simply dislikes cleaning carbon from a DI gas system. It’s also an excellent choice for builders wanting a unique, high-performance rifle that stands apart from standard builds. If you frequently use a suppressor, the self-regulating gas system is a significant benefit.
Skip it if: Your primary goal is building the absolute lightest possible rifle. Stick with a standard direct impingement system. If you are a purist who values parts commonality and the ability to swap any mil-spec BCG into any upper, this system introduces a proprietary element. For a budget-focused build where every dollar counts, a standard gas block and tube will save you money. Check our selection of standard gas systems for those alternatives.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Short-Stroke Gas Piston Conversion Kit |
| Material (Carrier) | 8620 Steel, Billet |
| Material (Piston/Gas Block) | 4140 & 4130 Steel |
| Manufacturing | CNC Machined, USA |
| Finish (Carrier) | Internal Hard Chrome, External Nitride (Melonite/QPQ) |
| Finish (Piston/Block) | Nitride (Melonite/QPQ) |
| Hardness/Quality | Heat-Treated to Mil-Spec+ Hardness Standards |
| Compatibility | AR-15/M4 Platform; .223 Rem/5.56mm; Mid-Length Gas System Barrels |
| Installation/Usage | Replaces DI Gas Tube & Standard BCG; Reuses Existing Bolt |
| Weight (Approx.) | Kit adds ~10-12 oz vs. DI (varies by barrel profile) |
| Dimensions (Gas Block) | Low-Profile, Clamp-On Style |
| Country of Origin | United States |
| Condition | New, Factory Fresh |
| SKU / Mfr. Part # | FGAA03109 / 812151022325 |
How It Stacks Up: A Real Comparison
| Feature | Adams Arms P Series (This Kit) | Budget Import Piston Kit (~$60-80) | Superior Arms / Premium Brand Kit (~$250+) |
|---|---|---|---|
| Material | 8620/4140 Steel, Heat-Treated | Often 4140 or unknown, variable heat treat | Similar 8620/4140 or proprietary alloys |
| Quality / Fit | CNC machined, consistent fit, Nitride/Chrome finish | Cast or rough machined, finish may be paint or cheap nitride | Excellent CNC fit, premium finishes like NiB or DLC |
| Compatibility | Specific to mid-length .223/5.56, reuses your bolt | Often “universal” with shims, fit can be problematic | Specific to platform/length, may include bolt |
| Shipping Origin | USA (In stock at our Boise, ID warehouse) | Direct from overseas, long lead times | USA, may have longer lead times depending on brand |
| Lifespan / Durability | Designed for high-volume/duty use; proven track record | Lifespan uncertain; parts may wear or fail quickly | Top-tier durability, often used by military contracts |
| Price Point | Mid-Range: Significant value for US-made quality | Lowest Cost: Higher risk of fit/function issues | Highest Cost: Diminishing returns for most shooters |
The comparison shows this Adams Arms kit occupies a strategic middle ground. You avoid the potential headaches of a no-name import kit while not paying the premium for top-shelf branding where the performance delta may not justify the cost for your use case.
Frequently Asked Questions
Will this Adams Arms P Series piston kit work with my existing AR-15 bolt?
Yes, provided your bolt is in-spec. The kit includes a proprietary bolt carrier, but you remove the bolt, firing pin, and cam pin from your current direct impingement carrier and install them into the new Adams Arms carrier. Always inspect your bolt for wear (especially lugs and gas rings) before reusing it.
Do I need to modify my barrel to install this piston kit?
No. The gas block is a clamp-on style, so it does not require drilling for taper pins. You will need to remove your existing front sight post or low-profile gas block and gas tube. The barrel must have a mid-length gas system (gas port roughly 7-9 inches from the chamber).
Is the gas system adjustable for use with a suppressor?
No, and that’s by design. The Adams Arms P Series uses a self-regulating gas plug. It automatically manages excess gas pressure when a suppressor is attached. This eliminates the need for manual adjustments, which is preferred for a defensive or duty rifle where simplicity is critical.
How does cleaning differ from a direct impingement system?
Cleaning is generally easier and less frequent. You focus on the piston head and the inside of the gas cylinder at the front of the rifle. The bolt carrier group and upper receiver see minimal carbon buildup. You’ll still clean and lubricate the bolt and carrier rails, but you won’t be scraping carbon from the carrier’s interior or the gas key.
Does this piston kit change the felt recoil?
It can. The recoil impulse often feels sharper and more direct with a short-stroke piston system compared to the slower, heavier push of a direct impingement system. The reduced reciprocating mass in the Adams Arms carrier helps, but the impulse is different. This is a subjective experience best judged firsthand.
Where can I buy a piston conversion kit online?
You can purchase the Adams Arms P Series Mid Length Piston Kit right here at Miamishooterssupply (miamishooterssupply.com). We are a Boise, ID-based retailer specializing in firearms parts and ship same-day on in-stock items like this kit.
What warranty does Adams Arms offer on this kit?
Adams Arms typically provides a limited lifetime warranty to the original purchaser against defects in materials and workmanship. Always retain your proof of purchase from an authorized dealer like Miamishooterssupply for warranty service.
✅ In stock — ready to ship today from our Boise, ID warehouse.
✅ Same-day shipping on orders placed before 2 PM MT.
✅ Discreet packaging on all shipments for privacy.
✅ 30-day returns on new, uninstalled items.
✅ Secure checkout with multiple payment options.
If you’ve weighed the pros and cons and a cleaner-running, high-reliability AR platform is your goal, the Adams Arms P Series Mid Length Piston Kit delivers proven performance. It’s a US-made system that solves specific problems for shooters who demand more from their equipment than a range-day plinker. The engineering is sound, the materials are quality, and the result is a rifle that operates differently—and for many, better.
